Switcher
Adjust switcher settings, make live cuts, adjust keys, apply transitions, overlay graphics and more.
The world’s most advanced live production switcher control software!

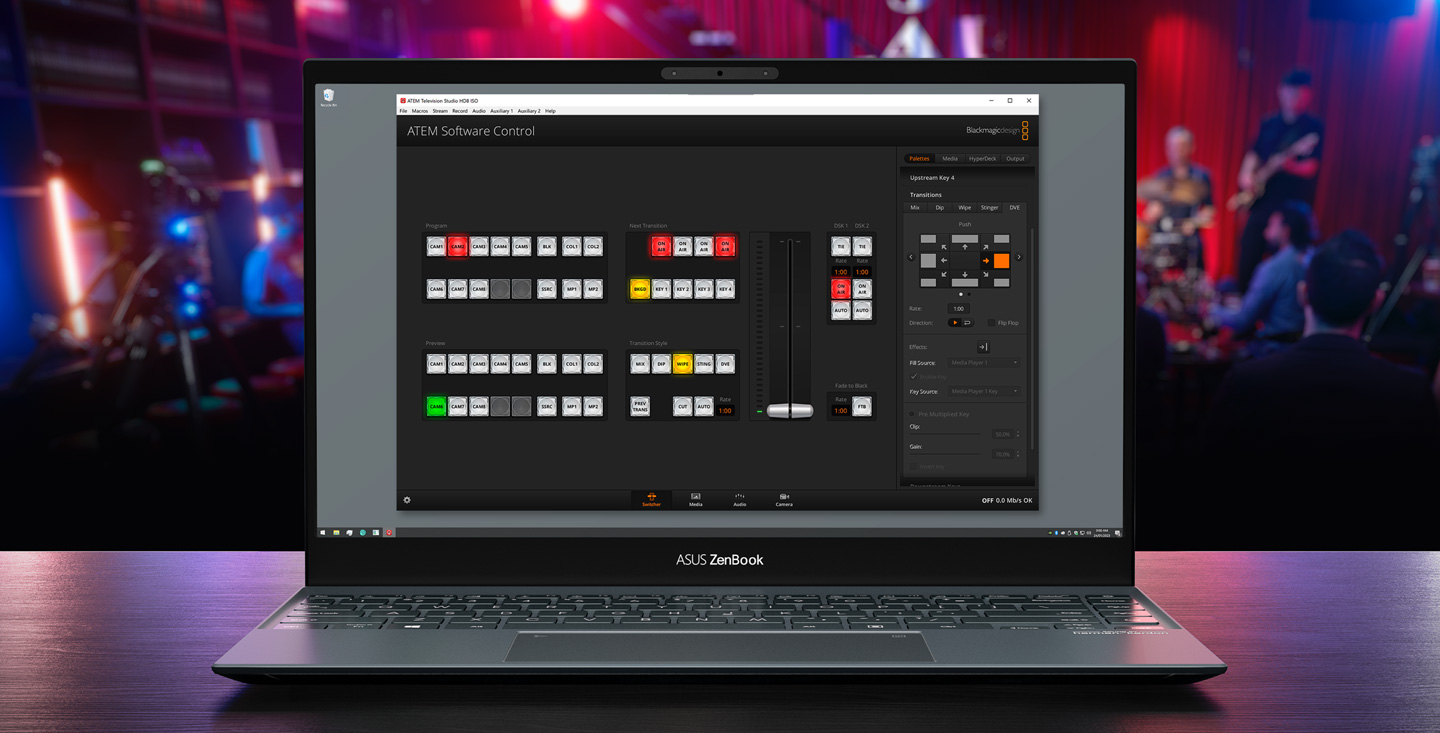

ATEM Television Studio can be operated from the front panel, or you can control it using the included free ATEM Software Control for Mac or Windows. ATEM Software Control gives you even more control and creative options! You can switch video sources live, load the media pool with graphics, use transitions and keys, change switcher settings and mix audio. For larger live productions, you can even run multiple copies of the software so that more than one person can work on the show at the same time!
Find ResellerElegant and Intuitive Interface
ATEM Software Control features an interface that’s been specifically designed for speed and accuracy. It features separate pages that make it easy to find the controls you need for each of the switcher’s major functions such as control, audio, macros, media and deck control. The switcher page features a familiar layout with buttons for sources, transitions, keyers and more. In addition the switcher page also has palettes that let you adjust transitions, keys and the media player. The media page lets you manage all of your graphic files and upload them to the switcher, while the audio page lets you control the built in multi channel Fairlight audio mixer.
Media
Upload RGBA still images and motion graphics clips. Graphics can be used for titles, bugs, lower thirds and more!
Audio
Professional 12 channel Fairlight audio mixer with faders, 6 band EQ, compressor, limiter and much more!
Camera
Control and color correct cameras via the SDI connection to any Blackmagic Studio Camera or URSA Broadcast.
Switcher Control
Full virtual switcher control panel!
You get the most efficient live production workflow with ATEM! The program bus is always live and allows direct source switching, so when you select a source it will immediately go on air. You can also take advantage of the advanced preview bus, which lets you make selections and preview them on the multiview before putting them on air. You can see what you have ready to go on air, and take it live with a press of the cut or auto buttons! Using the preview bus helps you see the next transition source so you can confidently control your live production.
Transition Control
The transition control block gives you fast access to quickly select transition styles and set timing on the fly during live production. Choose from mix, dip, wipe or even DVE transitions, then use the auto button to trigger transitions immediately when you switch sources, or use the fader bar for full manual control!
Transition Settings
ATEM Software Control lets you quickly access all transition settings and make precise adjustments before putting them on air! The transition palette has a wide range of adjustments. Simply choose the transition type and adjust its parameters. With so many options, you’ll be able to create the perfect transition for your production!
Upstream Keyer
When you need fast and seamless keying, the software controls allow precise adjustments. Green and blue screen backgrounds are never perfectly flat, so it’s vital to have powerful key controls that let you handle any kind of key! You get precise control of key parameters such as color, spill/flare suppression, foreground color correction and more.
Downstream Keyer
ATEM Television Studio includes a downstream keyer for adding bugs, logos, and lower thirds to your programs. Simply load PNG, TGA, BMP, GIF, JPEG or TIFF images with an alpha channel into the media pool and send to the media player for keying! Because it’s downstream, it is perfect for graphics that you want to overlay onto your program video.
Auto Transition
You can customize the duration of transitions, then use the auto button for smooth and perfectly timed transitions. When the auto button is turned on, switching between sources will automatically add the transition. Use auto for mix, dip, wipe, DVE and more! Auto changes to trigger transitions when set to program/preview switching.
DVE Settings
The ATEM Television Studio DVE can be used for more than picture in picture effects because it also works for DVE transitions! The transition palette in the ATEM Software Control app gives you control over all DVE options. Choose from over 16 dramatic DVE moves to add extra excitement to your production. DVE transitions can also be reversed!
Preview Transition
When program/preview style switching is selected, preview transition allows complicated multi layer green screen keys to be rehearsed before using them on air! Preview video can be seen on the multiview monitor or aux output when set to preview. Using preview transition is the best way to ensure your transition is perfect before going on air!
Fade To Black
When your program is starting, has a commercial break, or is ending, use the fade to black (FTB) button to fade all layers up or down at exactly the same rate. Fade to black is the last layer of the switcher so you can be sure every video and graphic layer, and every source, is faded cleanly together and in perfect sync!
Camera Control
ATEM Television Studio can provide full control of your cameras right from the ATEM Software Control app! Simply connect a Blackmagic Studio Camera to your ATEM Television Studio to get full camera control! All control communication is via the SDI program return connection. Control tally, white balance, ISO, shutter, iris, focus and even zoom on supported lenses. There's a DaVinci primary color corrector built into the camera, so you can go beyond simple color balancing, meaning you can innovate with digital film looks in live production. Software control allows a traditional CCU layout or a DaVinci color corrector layout. For advanced use you can add an ATEM Camera Control Panel.
Media Page
Drag and drop media to use it with your switcher!
Media Player
ATEM Television Studio features a media player that can be used for live graphics. Graphics are stored in a media pool, and are retained even if the power is turned off. You can use PNG, TGA, BMP, GIF, JPEG and TIFF files. Files with alpha channels will automatically convert to key signals so graphics can be used as bugs, lower thirds and titles!
Media Pool
ATEM Software Control lets you load up to 20 RGBA graphic files or up to 400 frames of motion graphic clips into the media pool on ATEM Television Studio. Then the media player allows graphics to appear as a video source! You can also use the Photoshop plug‑in to transfer graphics directly from Photoshop to the switcher, which is great for getting custom graphics on air quickly!
Audio Page
Professional multi channel audio mixer!
ATEM Software Control includes a built in multi channel Fairlight audio mixer that lets you independently adjust the level and balance from all of your audio inputs. The audio mixer features enough channels to handle 8 SDI inputs, plus the XLR, RCA and MADI inputs. All the video and audio inputs have independent 6 band parametric EQ, compressor, limiter, expander and noise gate as well as full panning. All inputs are metered so you can always see your source’s levels. There are buttons to turn audio on for each source in the program and for audio to follow video (AFV) when you switch between sources. There’s also a master fader for adjusting the final mixed program audio that is output to video.
Parametric Equalizer
Good equalization is the secret to good broadcast sound! The internal Fairlight audio mixer features 6-band parametric EQ on every single input channel. You can adjust 6 separate bands of frequencies to boost, fatten or thin the sound. This means mic inputs can be adjusted to be clear and easy to understand while other inputs can remain untouched.
Dynamics Processing
The internal Fairlight audio mixer also features a high quality compressor, limiter, expander and noise gate on every audio input channel. The compressor and limiter stop mic levels from excessive volume and distortion. Noise gate eliminates background noise in mics. Dynamics really make it easy to place different channels in an overall audio mix!
General
Media
Audio
Multiview
Sources
HyperDeck
Camera Control
Switcher Settings
Quickly customize switcher settings for your program!
Setting up for new jobs is easy with ATEM Software Control! Switcher settings are logically organized so you can change them quickly. You can also customize input labels that will be used to track sources when used on external hardware panels or ATEM Software Control. Even the multiview can be customized including program/preview arrangement, audio meters and more! You can even control HyperDecks for remote trigger and use them for motion media playback!
Instantly Recall Setups
ATEM Television Studio lets you quickly save your switcher set up and then recall it instantly. The switcher state is saved as an XML file so you can even edit the files to make changes. If you start to grow, you can use the XML setups from the ATEM Television Studio in other models of ATEM switcher, and you could even use the XML setup file in the biggest ATEM Constellation 8K switcher. It all just works! You can save the switcher state any time you like, or you can set up ATEM Software Control to auto save at regular intervals and the older versions of the files are kept. When saving the switcher state, you save not only the settings, but all of the media pool content as well!
Create Macros
Macros let you automate complex sequences of actions on your switcher that would be difficult to do during a live production if you have to press multiple buttons manually. You can record transitions between sources, key effects, graphics and more. Simply open the macro window, select record and operate your switcher like normal. Your actions are automatically stored in your ATEM Television Studio and can also be stored as XML files so you can edit and combine multiple macros together. To use a macro, just press the macro button! Macros are also available on external hardware panels so you can trigger a macro from multiple locations, as well as ATEM Software Control.
HyperDeck Control
ATEM Television Studio works with Blackmagic HyperDeck Studio Mini recorders so you can use pre‑recorded clips in live programs! You can connect up to 4 HyperDecks as sources, see a list of clips on each one, select a clip, cue it, pre-roll, and play it back at any time. It’s perfect for adding pre-recorded spots, promos, credit rolls and more to your live program! Imagine setting up a HyperDeck to play advertising spots at events, all automated with HyperDeck control and macros! HyperDecks could even be used to generate fun backgrounds for music videos as well as animated backdrops to key people over, all perfectly in sync!
Switch Your Program
Control Your Cameras
Mix Your Audio
Organize Your Media
Multiple Users
Producing large live events such as sports, concerts, worship services, and educational events requires a high performance team of multiple creative people working seamlessly together. ATEM Television Studio's Ethernet connections mean multiple control panels can be used all at the same time. You can run multiple copies of ATEM Software Control where different people can switch, manage media, mix audio and control cameras, all on different computers so they don't interfere with each other while working. Even hardware panels can be added for the best workflow for when you're working on a big live event. You can even run software remotely over the Internet from any location on the planet!
