Blackmagic Streaming Encoder 4K
Blackmagic Streaming Encoder 4K
Blackmagic Streaming Decoder 4K
Blackmagic Web Presenter HD
Blackmagic Web Presenter 4K
Blackmagic Streaming Encoder 4K is powerful self-contained streaming processor with H.264 and H.265 streaming in HD or Ultra HD via SRT or RTMP protocols. Stream directly to services such as YouTube, Facebook, X and more. Plus you can stream to the internet using Ethernet or connect a 5G or 4G phone to use mobile data. Includes USB webcam, standards converted 12G-SDI input and streaming monitoring output.
$745
1
1
1
1.5G, 3G, 6G, 12G
1
16 channels embedded audio.
16 channels embedded audio on Loop Out.
2 channels embedded audio on Monitor Out.
1 x USB-C up to 2160p60
Ethernet supports 10/100/1000 BASE-T for live streaming, configuration and software updates.
720p50, 720p59.94, 720p60,
1080i50, 1080i59.94, 1080i60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI,
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B
Rec. 709, Rec. 2020
Auto detects SMPTE level A or B on SDI input.
1080p50, 1080p59.94, 1080p60
720p25, 720p30, 720p50, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Blackmagic Streaming Encoder 4K supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP) in H.264, and Secure Reliable Transport (SRT) in H.264 and H.265.
Blackmagic Streaming Encoder 4K supports embedding CEA‑608 and CEA‑708 closed captions in your live RTMP stream.
Support source timecode over RTMP and SRT streams.
Built in control panel including 6 buttons, spin knob control and 2.2 inch color display.
Front panel, USB‑C or Ethernet.
Supports remote camera control, color corrector, tally and talkback.
REST API over Ethernet for external control via HTTP when used with REST client applications.
Built in 2.2 inch LCD for monitoring video, audio and status plus menu settings.
Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, Wowza Streaming Engine.
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10, 64-bit.
Windows 11.
Linux
Chrome OS
1 x Internal 100 - 240V AC.
1 x 4-pin XLR for +12V DC input for external power supply or battery use.
25 W

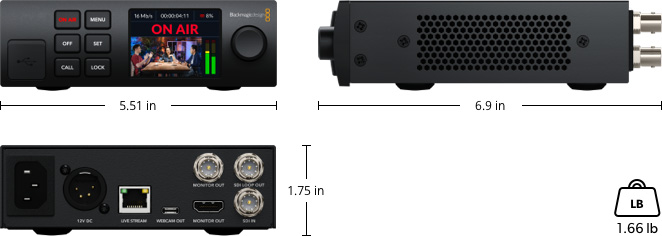

One third rack unit width, 1 rack unit height.
0° C to 40° C (32° - 104°F)
-20° to 45° C (-4° to 113° F)
0% to 90% non-condensing
Blackmagic Streaming Encoder 4K
Welcome wallet with QR code for software download
3 Year Limited Manufacturer’s Warranty.
Blackmagic Streaming Decoder 4K is a professional streaming decoder that lets you receive an H.264 or H.265 stream from Blackmagic Streaming Encoder, ATEM switcher or Blackmagic camera and convert it back to SDI and HDMI video. Includes Blackmagic Cloud streaming and 12G-SDI reference input that lets you connect SDI tally, camera control and talkback back to the encoder.
$745
1
1
1
1.5G, 3G, 6G, 12G
1
2 channels embedded Live Stream audio on output.
2 channels embedded Program audio on input.
2 channels embedded talkback audio on input.
16 channels embedded audio on 12G-SDI Ref In.
16 channels embedded audio on 12G-SDI Ref Out.
2 channels embedded audio on 12G-SDI Out.
8 channels embedded audio on Monitor Out.
1 x USB-C up to 2160p60
Ethernet supports 10/100/1000 BASE-T for live streaming, configuration and software updates.
720p50, 720p59.94, 720p60,
1080i50, 1080i59.94, 1080i60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI,
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B
Rec. 709, Rec. 2020
Auto detects SMPTE level A or B on SDI input.
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p62
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
4:2:2
YUV
720p25, 720p30, 720p50, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Receives (RTMP) H.264 or (SRT) H.265 streams from the Blackmagic Streaming Encoder or compatible Blackmagic cameras.
Web Presenter 4K supports embedding CEA‑608 and CEA‑708 closed captions in your live RTMP stream.
Support source timecode over RTMP and SRT streams on 12G-SDI Out.
Built in control panel including 6 buttons, spin knob control and 2.2 inch color display.
Front panel, USB‑C or Ethernet.
Supports remote camera control, color corrector, tally and talkback.
REST API over Ethernet for external control via HTTP when used with REST client applications.
Built in 2.2 inch LCD for monitoring video, audio and status plus menu settings.
Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, Wowza Streaming Engine.
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10, 64-bit.
Windows 11.
Linux
Chrome OS
1 x Internal 100 - 240V AC.
1 x 4-pin XLR for +12V DC input for external power supply or battery use.
TBA
One third rack unit width, 1 rack unit height.
0° C to 40° C (32° - 104°F)
-20° to 45° C (-4° to 113° F)
0% to 90% non-condensing
Blackmagic Streaming Decoder 4K
Welcome wallet with QR code for software download
1 Year Limited Manufacturer’s Warranty.
Blackmagic Web Presenter is a complete streaming solution that includes a professional hardware streaming engine for direct streaming via Ethernet to YouTube, Facebook, Twitter and more! Plus you can stream to the internet using Ethernet or connect a 5G or 4G phone to use mobile data! The built in USB connections also work like a webcam, so you can connect a computer and use any video software. You even get a monitoring output with video, audio meters, trend graphs and more!
$685
1
1 x loop out, 1 x monitor out.
1.5G, 3G, 6G, 12G
1 x monitor out
1 x USB-C up to 1080p60
Ethernet supports 10/100/1000 BaseT for live streaming, software control and software updates.
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Rec.601, Rec.709, Rec.2020
Auto detects SMPTE level A or B on SDI input.
1080p50, 1080p59.94, 1080p60
720p25, 720p30, 720p50, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Blackmagic Web Presenter HD supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) in H.264.
Web Presenter HD supports embedding CEA-608 and CEA-708 closed captions in your live RTMP stream.
Built in control panel with 2.2 inch color display for video preview, audio meters and status.
Front panel, USB‑C or ethernet.
Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, Wowza Streaming Engine.
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10, 64-bit.
Windows 11.
Linux
Chrome OS
1 x Internal 100 - 240V AC.
1 x +12V DC 4‑pin XLR.
21 W
0° C to 40° C (32° - 104°F)
-20° to 45° C (-4° to 113° F)
0% to 90% non-condensing
Blackmagic Web Presenter HD
3 Year Limited Manufacturer’s Warranty.
Blackmagic Web Presenter 4K is the ultimate HD and Ultra HD streaming solution that includes a professional hardware streaming engine for streaming up to 2160p60 directly to YouTube, Facebook, Twitter and more! Plus you can stream to the internet using Ethernet or connect a 5G or 4G phone to use mobile data! The built in USB connections also work like a webcam, so you can connect a computer and use any video software. You even get a monitoring output with video, audio meters, trend graphs and more!
$895
1
1
1
1.5G, 3G, 6G, 12G
1 x monitor out
16 channels embedded audio.
16 channels embedded audio on Loop Out.
2 channels embedded audio on Monitor Out.
1 x USB-C up to 2160p60
Ethernet supports 10/100/1000 BASE-T for live streaming, configuration and software updates.
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Rec.601, Rec.709, Rec.2020
Auto detects SMPTE level A or B on SDI input.
1080p50, 1080p59.94, 1080p60
720p25, 720p30, 720p50, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Blackmagic Web Presenter 4K supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP) in H.264, and Secure Reliable Transport (SRT) in H.264 and H.265.
Web Presenter 4K supports embedding CEA‑608 and CEA‑708 closed captions in your live RTMP stream.
Built in control panel including 6 buttons, spin knob control and 2.2 inch color display.
Front panel, USB‑C or Ethernet.
Built in 2.2 inch LCD for monitoring video, audio and status plus menu settings.
Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, Wowza Streaming Engine.
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10, 64-bit.
Windows 11.
Linux
Chrome OS
1 x Internal 100 - 240V AC.
1 x 4-pin XLR for +12V DC input for external power supply or battery use.
25 W
One third rack unit width, 1 rack unit height.
0° C to 40° C (32° - 104°F)
-20° to 45° C (-4° to 113° F)
0% to 90% non-condensing
Blackmagic Web Presenter 4K
3 Year Limited Manufacturer’s Warranty.
